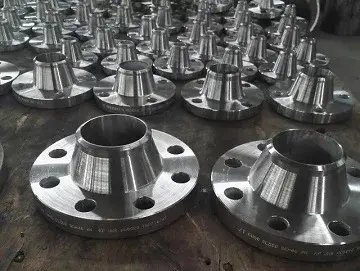

Alloy 20 Flanges, also known as Carpenter 20, are specifically engineered to provide superior resistance to acid attack, particularly in environments containing sulfuric acid. Manufactured under ASTM B462 (forged) and UNS N08020 specifications, this "Super" stainless steel alloy contains a stabilized chemistry of Nickel, Chromium, and Copper, along with Niobium to prevent intergranular corrosion. These flanges are indispensable in the chemical processing, pharmaceutical, and food industries where harsh chemical reagents would rapidly degrade standard stainless steel grades.
Our comprehensive range of Alloy 20 slip-on, weld neck, blind, and threaded flanges is designed to meet the rigorous demands of ASME B16.5 standards. Beyond its legendary resistance to sulfuric acid, Alloy 20 offers excellent performance in phosphoric acid, nitric acid, and aqueous salt solutions. Each flange undergoes solution annealing to ensure maximum corrosion resistance and mechanical ductility. Whether your application involves pickling tanks, chemical piping, or heat exchangers, our Alloy 20 flanges provide a robust, long-term solution against pitting, crevice corrosion, and chloride-induced stress corrosion cracking.
| Specification | Details |
|---|---|
| Specification: | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Stainless Steel Flanges: |
ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L Alloy Steel Flanges: ASTM A182 F1, F5, F9, F11, F22, F91 |
| Carbon Steel Flanges: | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Special Alloy Flanges: | Duplex, Super Duplex, Nickel Alloys |
| Types of Flanges: | Weld neck Flanges (WNRF), Slip-on Flanges (SORF), Blind Flanges (BLRF), Lap Joint Flanges (SOLJ), Socket-weld Flanges (SWRF), Screwed (Threaded) Flanges, Long weld neck Flanges (LWNRF), Spectacle Blind Flanges, Spacer & Blind Flanges, Ring Type Joint Flanges (RTJ), Reducing Flanges, Raised Face (RF) Flanges, Orifice Flanges, Large Diameter Flanges, Custom Flanges, Drawing Flanges, Forged Flanges, Plate Flanges, Flat Face Flanges, etc. |
| Flange Face Type: | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Surface treatment: | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range: | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure Ratings: | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Coating/Surface Treatment: | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Marking & Packing: | Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products. |
| Test Certificates: | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Value Added Services: | CNC Machining, Customised Flanges |
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Alloy 20 Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Alloy 20 Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Alloy 20 Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Alloy 20 Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Alloy 20 loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Alloy 20 loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Alloy 20 Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Alloy 20 Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Alloy 20 Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Alloy 20 Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |
Alloy 20 Weld Neck Flange
Alloy 20 Lap Joint Flange
Alloy 20 Orifice Flange
Alloy 20 Spectacle Blind Flange
Alloy 20 Ring Flange
Alloy 20 Socket Weld Flange
| Element | ASTM B462 / UNS N08020 (%) |
|---|---|
| Nickel (Ni) | 32.0 – 38.0 |
| Chromium (Cr) | 19.0 – 21.0 |
| Copper (Cu) | 3.0 – 4.0 |
| Molybdenum (Mo) | 2.0 – 3.0 |
| Niobium (Nb) + Ta | 8 x C min – 1.00 max |
| Iron (Fe) | Balance |
| Carbon (C) | 0.07 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Property | Value (Min. Requirement) |
|---|---|
| Tensile Strength (MPa) | 550 MPa (80,000 psi) |
| Yield Strength (0.2% Offset) | 241 MPa (35,000 psi) |
| Elongation in 2 in. (%) | 30% |
| Reduction of Area (%) | 50% |
| Hardness (Brinell) | 217 HBW max |
| Density | 8.05 g/cm³ |
| Melting Point | 1385 - 1443°C (2525 - 2630°F) |
