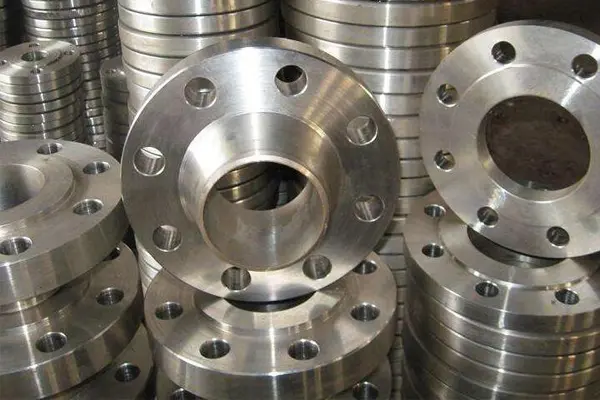

ASTM B366 F904L Stainless Steel Flanges are high-alloy, super-austenitic piping components specifically designed to deliver exceptional corrosion resistance in severe environments. Manufactured in strict compliance with the ASTM B366 (or ASME SB366) and ASME B16.5 standards, these forged flanges are produced from grade 904L stainless steel. Containing high concentrations of chromium, nickel, molybdenum, and an intentional addition of copper, this grade provides outstanding resistance to non-oxidizing acids, particularly sulfuric, phosphoric, and acetic acids, while virtually eliminating chloride-induced stress corrosion cracking.
Our manufacturing line supplies a comprehensive inventory of ASTM B366 F904L slip-on, weld neck, blind, threaded, and socket weld flanges. Available in all standard pressure ratings from Class 150 up to Class 2500, every flange is precision CNC machined to ensure high-integrity sealing. Because of its excellent resistance to pitting and crevice corrosion in chloride-bearing environments, the F904L alloy is the premier choice for chemical processing plants, seawater cooling systems, pulp and paper manufacturing, oil refineries, and pharmaceutical production equipment.
| Specification | Details |
|---|---|
| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
| Grade | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Connect Type/ Flange Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue, Groove |
| Surface treatment | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure | DIN:PN6 PN10 PN16 PN25 PN40; ANSI: class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-PN6, PN10, PN16, PN25, PN40, PN64 etc. JIS: 5K, 10 K, 16 K 20 K,30 K,40 K, 63 K |
| Standard | ANSI DIN,GOST,JIS,UNI,BS,AS2129,AWWA,EN,SABS,NFE etc. ASME, API, ASTM, BS, DIN, EN, MSS, JIS, AWWA, GOST ANSI Flange, ASME Flange, BS Flange, DIN Flange, EN Flange
|
| Production technique: | Forged, Heat treated and machined |
| Special Design |
As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Stainless Steel Threaded Flange, Slip-On Flange, Socketweld Flange, Weld Neck Flange, Blind Flange |
| Test | Direct-reading Spectrograph,Hydrostatic testing machine,X-ray detector,UI trasonic flaw detector,Magnetic particle detector |
| Equipment | Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Specialized manufacturer of | Stainless Steel Blind Flanges, Stainless Steel Table Flanges, Stainless Steel Weld Neck Flanges, Stainless Steel Threaded Flanges, Stainless Steel Slip-On Flanges, Stainless Steel Socketweld Flanges, Stainless Steel Plate Flanges, Stainless Steel Lap Joint Flanges, Stainless Steel Loose Flanges, and Stainless Steel Orifice Flanges. Stainless Steel AS 4087 Water Flanges are available in class 150, 300, 600, 900, 1500 and 2500. |
| Key markets and industries |
|
| Similar Pipe Flange Key Grades |
|
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Stainless Steel 904L Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Stainless Steel 904L Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Stainless Steel 904L Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Stainless Steel 904L Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Stainless Steel 904L loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Stainless Steel 904L loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Stainless Steel 904L Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Stainless Steel 904L Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Stainless Steel 904L Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Stainless Steel 904L Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |
Stainless Steel 904L Weld Neck Flange
Stainless Steel 904L Lap Joint Flange
Stainless Steel 904L Orifice Flange
Stainless Steel 904L Spectacle Blind Flange
Stainless Steel 904L Ring Flange
Stainless Steel 904L Socket Weld Flange
| Element | Value (%) |
|---|---|
| Carbon (C) | 0.02 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 19.00 – 23.00 |
| Nickel (Ni) | 23.00 – 28.00 |
| Molybdenum (Mo) | 4.00 – 5.00 |
| Copper (Cu) | 1.00 – 2.00 |
| Phosphorus (P) | 0.045 max |
| Sulfur (S) | 0.035 max |
| Iron (Fe) | Balance |
| Property | Value |
|---|---|
| Tensile Strength (MPa) | 490 min |
| Yield Strength (0.2% Offset, MPa) | 220 min |
| Elongation in 2 in. or 50mm (%) | 35 min |
| Reduction of Area (%) | 50 min |
| Hardness (Brinell HBW) | 70 – 90 HRB (approx. 150 HBW max) |
