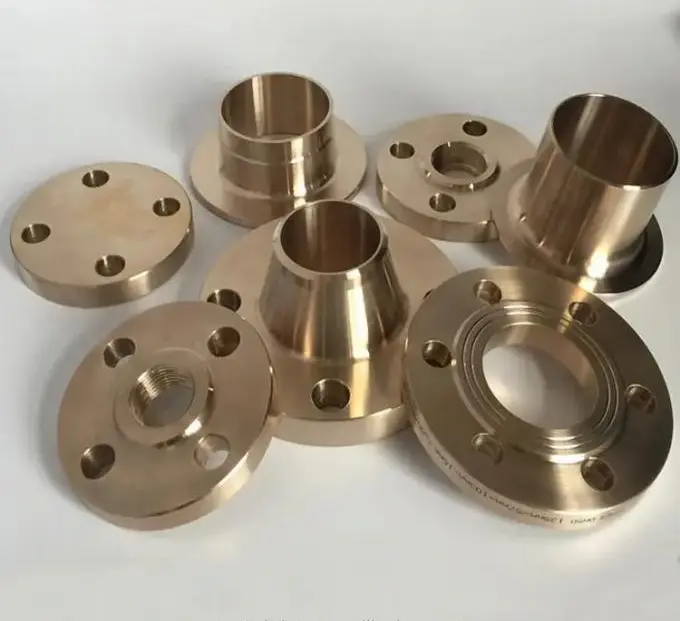

Copper Nickel Flanges, commonly referred to as Cupro Nickel flanges, are crafted from an alloy that primarily consists of copper and nickel, with strengthening elements like iron and manganese. These flanges are available in two main grades: 90/10 (C70600) and 70/30 (C71500). Within the industrial landscape of Saudi Arabia, Copper Nickel is the gold standard for marine engineering due to its inherent resistance to macro-fouling and superior corrosion resistance in high-velocity seawater. These properties make them indispensable for the Kingdom’s extensive desalination networks and offshore cooling systems.
Our Cu-Ni weld neck, slip-on, composite, and blind flanges are manufactured in accordance with ASTM B151 and ASME B16.5 standards to ensure reliable leak-proof connections. The 70/30 grade offers higher strength and better resistance to impingement corrosion, making it ideal for the most demanding naval and offshore applications. Conversely, the 90/10 grade provides a cost-effective solution with excellent antimicrobial properties and resistance to stress corrosion cracking. These flanges are widely utilized in shipbuilding, salt water piping, and chemical processing units throughout the Red Sea and Arabian Gulf regions.
| Specification | Details |
|---|---|
| Specification: | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Stainless Steel Flanges: |
ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L Alloy Steel Flanges: ASTM A182 F1, F5, F9, F11, F22, F91 |
| Carbon Steel Flanges: | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Special Alloy Flanges: | Duplex, Super Duplex, Nickel Alloys |
| Types of Flanges: | Weld neck Flanges (WNRF), Slip-on Flanges (SORF), Blind Flanges (BLRF), Lap Joint Flanges (SOLJ), Socket-weld Flanges (SWRF), Screwed (Threaded) Flanges, Long weld neck Flanges (LWNRF), Spectacle Blind Flanges, Spacer & Blind Flanges, Ring Type Joint Flanges (RTJ), Reducing Flanges, Raised Face (RF) Flanges, Orifice Flanges, Large Diameter Flanges, Custom Flanges, Drawing Flanges, Forged Flanges, Plate Flanges, Flat Face Flanges, etc. |
| Flange Face Type: | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Surface treatment: | Anti-rust oil, transparent/ yellow/ black anti trst paint, Zinc, hot dipped galvanized |
| Size Range: | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| Pressure Ratings: | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Coating/Surface Treatment: | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Marking & Packing: | Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products. |
| Test Certificates: | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Value Added Services: | CNC Machining, Customised Flanges |
| Flange Type | Dimension Range | Standard / Drawing Valid Norm |
|---|---|---|
| Copper Nickel Blind Flanges | DN15 – DN2500 | DIN2527 PN16 DN150 BL 300lb 6" |
| ½" – 24" | Standard ANSI / ASME Class 150 to 2500 | |
| Copper Nickel Threaded with neck | DN15 – DN150 | DIN2566 DN32 / 42.4 TH 300lb 1" |
| Copper Nickel Threaded Flanges | ½" – 24" | Standard Threaded NPT / BSPT Sizes |
| Flanges smooth for welding (Plate) | DN15 – DN2500 | DIN2576 DN150 |
| Copper Nickel Welding Neck Flanges | DN15 – DN2500 | DIN2635 DN150 / 168.3 WN 300lb 6", GOST Dy150 Py16 |
| ½" – 24" / Dy10 – Dy2400 | ASME B16.5 WN Classes 150 – 2500 | |
| Copper Nickel loose flanges, smooth Bunde | DN15 – DN2500 | DIN2642 DN150 |
| Copper Nickel loose flanges Stub | DN15 – DN2500 | DIN2673 DN150 |
| Copper Nickel Welding flanges with neck | DN15 – DN2500 | DIN86030 DN150 |
| Copper Nickel Slip On Flanges | ½" – 24" | SO 300lb 6" |
| Dy10 – Dy2400 | GOST Standard Specifications | |
| Copper Nickel Lap Joint Flanges | ½" – 24" | LJ 300lb 6" |
| Copper Nickel Socket Welding Flanges | ½" – 3" | SW 300lb 6" |
| Forged and Plate Flanges (Slip-On, Weld Neck, Blind, Lap Joint, Threaded, Socket Weld, Reducing, Plate) |
½" – 36" | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ), Lap-Joint Face (LJF), Large Male-Female (LMF), Small Male-Female (SMF), Large Tongue & Groove, Small Tongue & Groove |

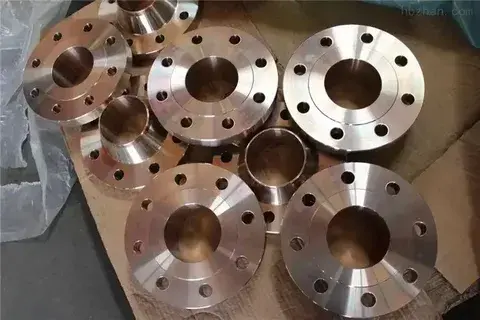

Copper Nickel Weld Neck Flange
Copper Nickel Long Weld Neck Flange

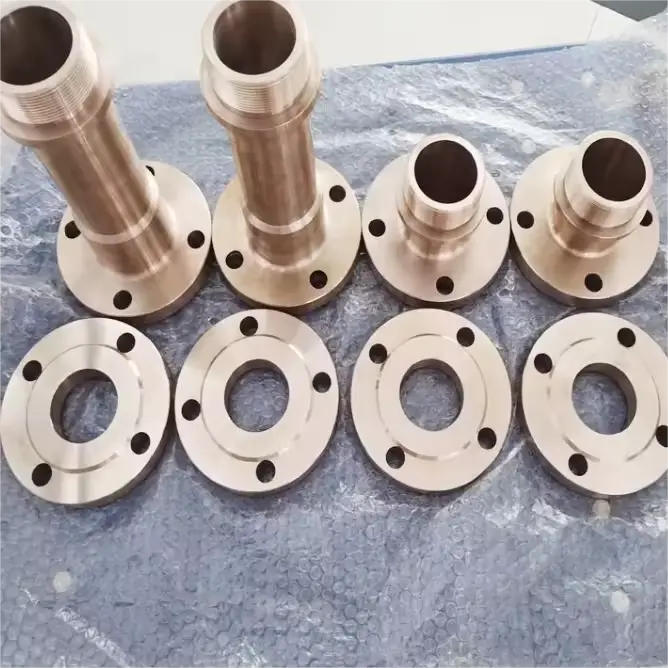

Copper Nickel Lap Joint Flange
Copper Nickel Blind Flange

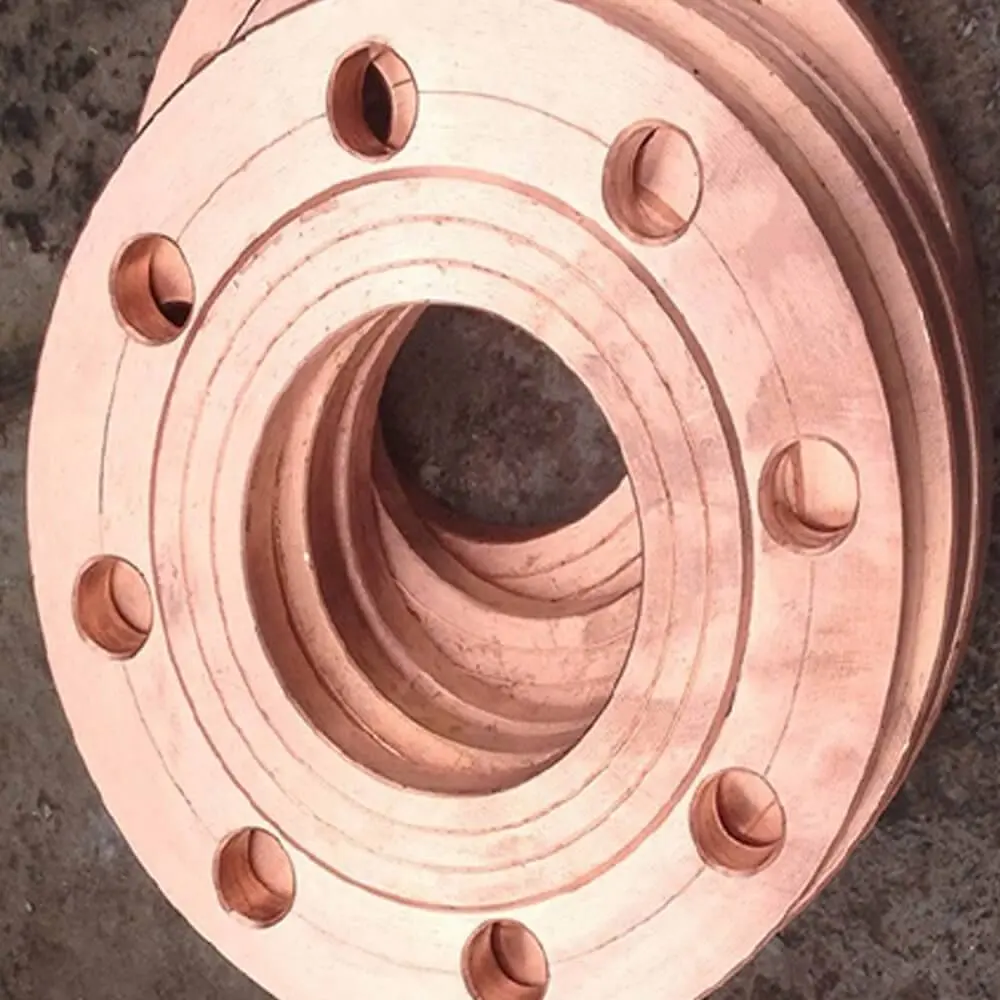

Copper Nickel Ring Flange

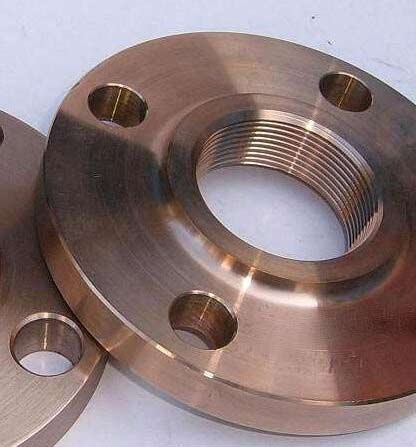

Copper Nickel Threaded Flange
| Element | Cu-Ni 90/10 (C70600) (%) | Cu-Ni 70/30 (C71500) (%) |
|---|---|---|
| Nickel (Ni) | 9.0 – 11.0 | 29.0 – 33.0 |
| Copper (Cu) | Remainder | Remainder |
| Iron (Fe) | 1.0 – 1.8 | 0.4 – 1.0 |
| Manganese (Mn) | 1.0 max | 1.0 max |
| Lead (Pb) | 0.05 max | 0.05 max |
| Zinc (Zn) | 1.0 max | 1.0 max |
| Sulfur (S) | 0.02 max | 0.02 max |
| Phosphorus (P) | 0.02 max | 0.02 max |
| Property | 90/10 (C70600) | 70/30 (C71500) |
|---|---|---|
| Tensile Strength (MPa) | 275 MPa (Min) | 345 MPa (Min) |
| Yield Strength (0.5% Extension) | 105 MPa (Min) | 125 MPa (Min) |
| Elongation (%) | 30% | 30% |
| Density (g/cm³) | 8.94 | 8.94 |
| Melting Point | 1100 – 1145°C | 1170 – 1240°C |
| Thermal Conductivity (W/m·K) | 40.0 | 29.0 |
| Elastic Modulus (GPa) | 135 GPa | 150 GPa |
